Real-Time Feedback Precision Control
Precise target flow regulation using real-time pipeline flow feedback

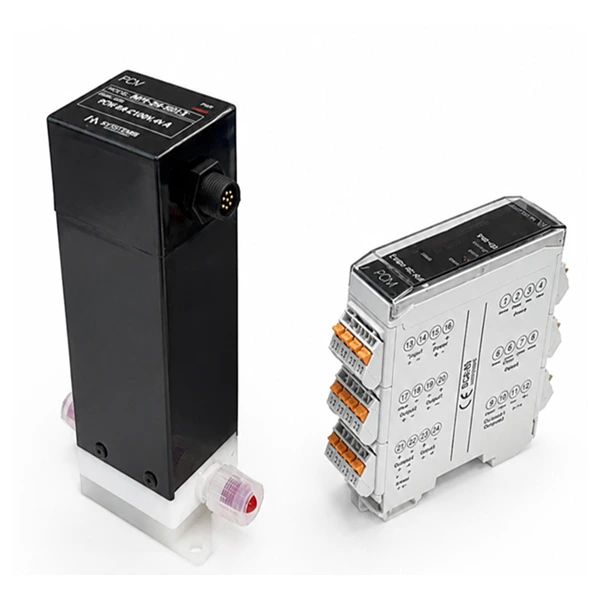

Flow Control Valve (FCV)
The Flow Control Valve (FCV) receives real-time pipeline flow feedback and precisely regulates the target flow rate. Its controller and control valve architecture supports stable control for fixed-volume supply, mixing, and concentration adjustment processes.
- Precision control based on real-time flow feedback
- Fixed-volume supply, mixing, and concentration control
- Multiple piping sizes and control interfaces
Key Technologies & Advantages
Controller & Control Valve Architecture
Stable real-time flow control through an integrated controller and control valve structure
Fixed-Volume and Mixing Applications
Optimized for quantitative flow, mixing, and concentration adjustment processes
Precision Drive and PID Control
Fast, accurate response through a high-resolution motor and multi-PID control system
Compact, Chemical-Resistant Design
Teflon wetted parts, reduced drive friction, a separate controller, and a compact valve design
Specification
| Size | Connection | Code | Flow Range |
|---|---|---|---|
| 4 | 1/4" Pillar Super300 | F03M | 10 ~ 300 mL/min |
| F05M | 25 ~ 500 mL/min | ||
| F10M | 50 ~ 1,000 mL/min | ||
| F20M | 100 ~ 2,000 mL/min | ||
| 8 | 3/8" Pillar Super300 | F20M | 100 ~ 2,000 mL/min |
| F30M | 150 ~ 3,000 mL/min | ||
| F50M | 250 ~ 5,000 mL/min | ||
| 15 | 1/2" Pillar Super300 | F10L | 0.5 ~ 10 L/min |
| F15L | 0.75 ~ 15 L/min | ||
| 20 | 3/4" Pillar Super300 | F20L | 1.0 ~ 20 L/min |
| F30L | 1.5 ~ 30 L/min | ||
| 25 | 1" Pillar Super300 | F50L | 5.0 ~ 50 L/min |
Control & Connector Codes
| Code | Output / Command | Connector |
|---|---|---|
| A | DC 4 ~ 20 mA | S : Straight |
| D | RS-485 Modbus | L : Elbow 90° |
| I / O | — | In / Out |

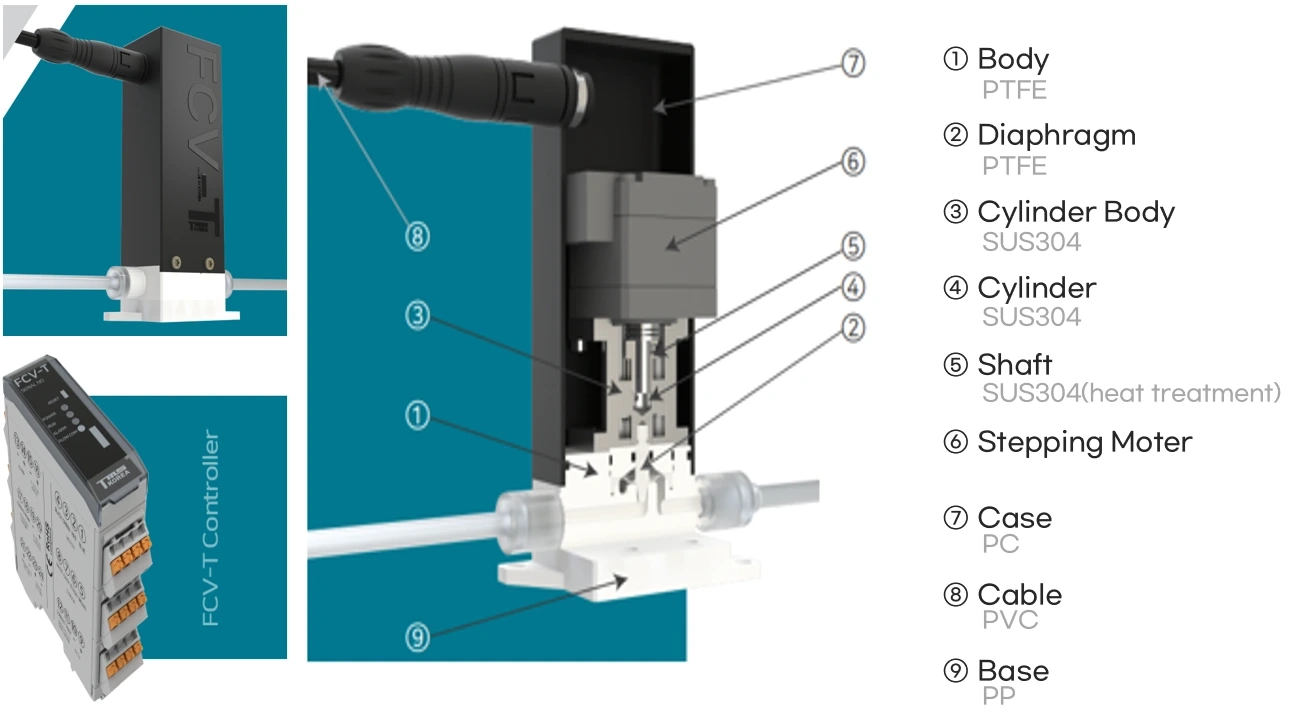

Part Number Configuration
